Key Features,
- Effective clear water through the perfect combination of filter system and UVC technology
- Simple handling and convenient, patented cleaning mechanism
- Can be perfectly integrated into the natural pond landscape
Characteristic,

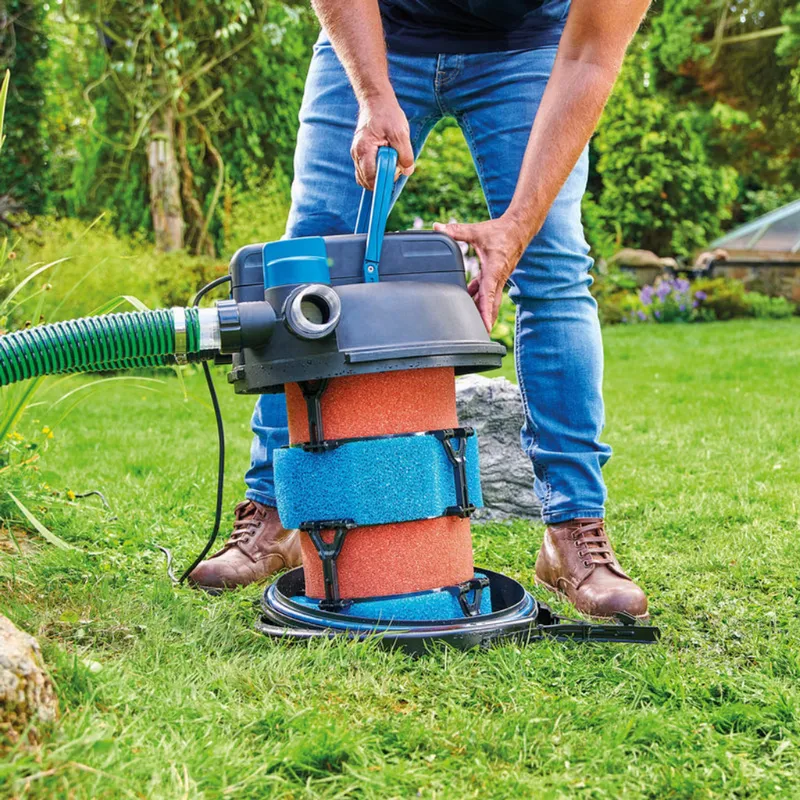

- POND FILTER: Patented cleaning mechanism with optimised filter sponges

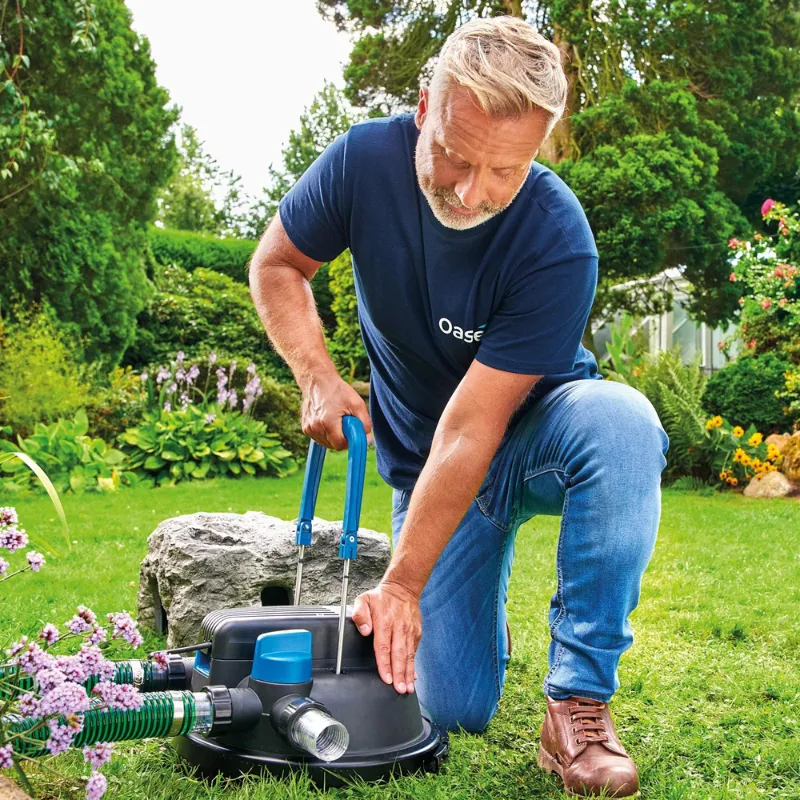

- CONVENIENT: Easy to maintain and clean thanks to simple handle mechanism

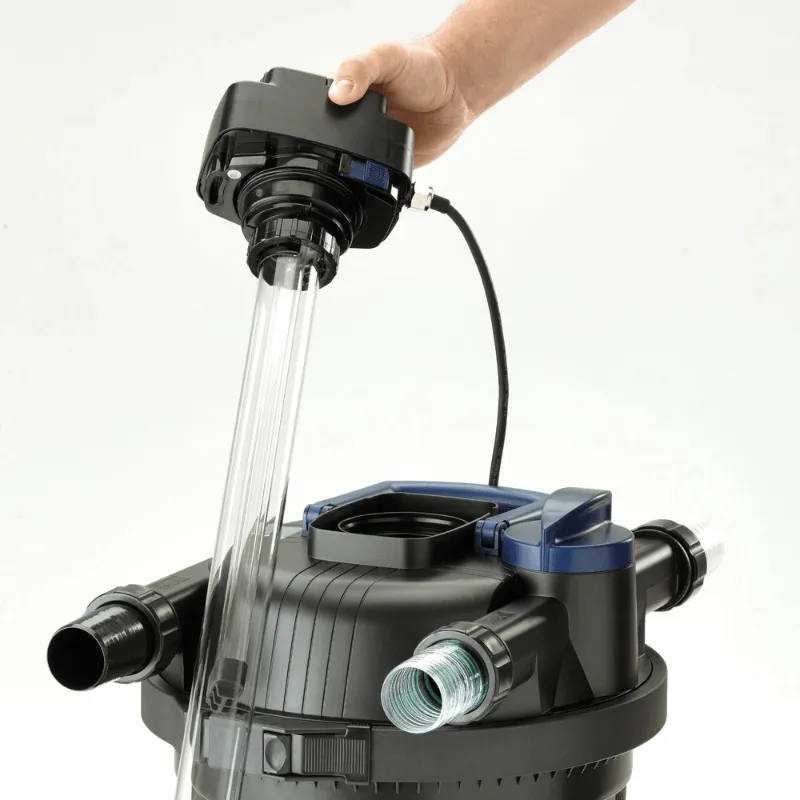

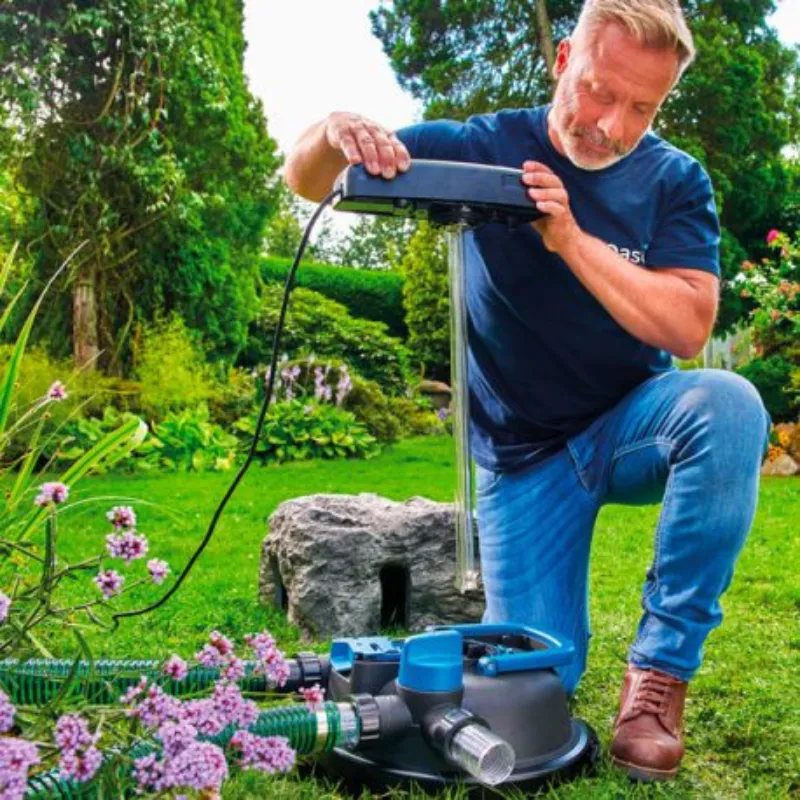

- EASY LAMP CHANGE: The UV lamp can be changed while the unit is running - no need to switch off the filter, no need to dismantle the quartz glass
- PROTECTED: The high-quality UVC housing protects the ballast unit from sunlight and moisture
- POWERFUL: All latest generation FiltoClear models feature upgraded, highly effective UV lamps
- 2-WAY VALVE: Choose whether the water flows into the pond or into the waste water after cleaning the filter
- IMPROVED EFFICIENCY: The built-in OASE bypass technology ensures optimum water flow and prevents the filter from clogging
- STABLE AND ROBUST: The hard-wearing housing made of high-quality plastic can be easily buried in the ground and impresses with its long durability

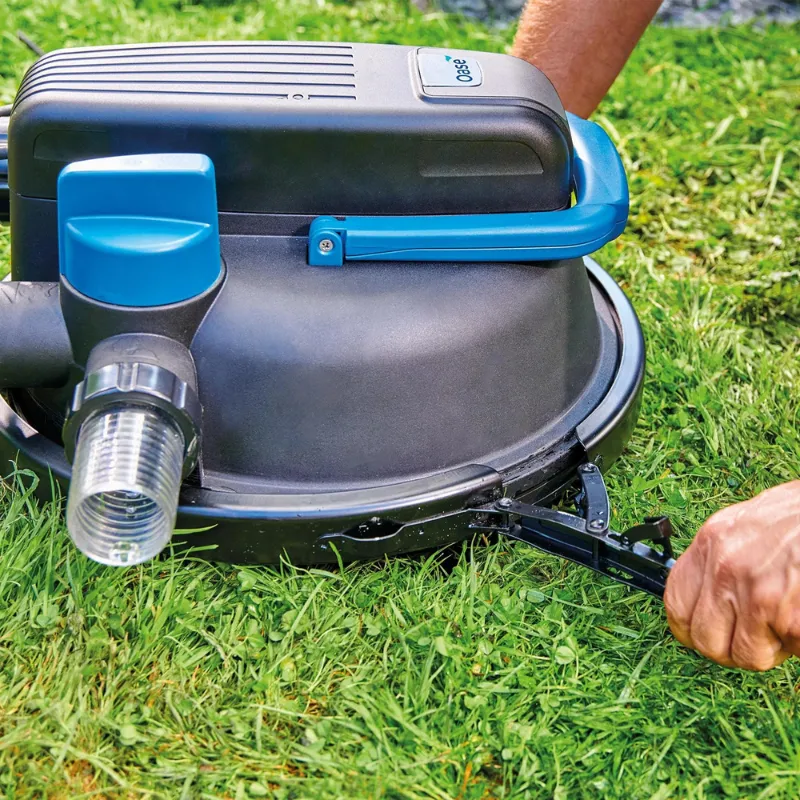

- UNDER PRESSURE: The metal clamping ring with simple lever function makes opening and closing a FiltoClear safer and easier than ever before
TECHNICAL DATA
Dimensions filter (L x W x H) mm 380 x 380 x 608
Net weight kg 15.40
Rated voltage filter 220 - 240 V / 50 - 60 Hz
Power consumption UVC W 42
UVC cleaning rotor Yes
Guarantee Years 2
Power cable length UVC m 5.00
Number of blue filter foams Units 2
Number of red filter foams Units 1
Number of purple filter foams Units 1
Inlet connections mm 38 / 50
Inlet connections 1 ½", 2"
Connections, outlet mm 38 / 50
Outlet connections 1 ½", 2"
Connections, sludge discharge mm 38 / 50
Sludge discharge connections 1 ½", 2"
Max. operating pressure bar 0.2
Dimensions pump (L x W x H) – mm mm 340 x 280 x 165
Rated voltage Pump 220 - 240 V / 50 - 60 Hz
Power consumption pump W 110
Max. flow rate l/h 12000
Guarantee pump Years 3
Power cable length pump m 10.00
Suitable for ponds up to max. m3 19.0
Suitable for ponds with fish stock m3 10.0
Suitable for ponds with koi m3 5.0
