Key Features:

• First class and powerful individual products, perfectly matched

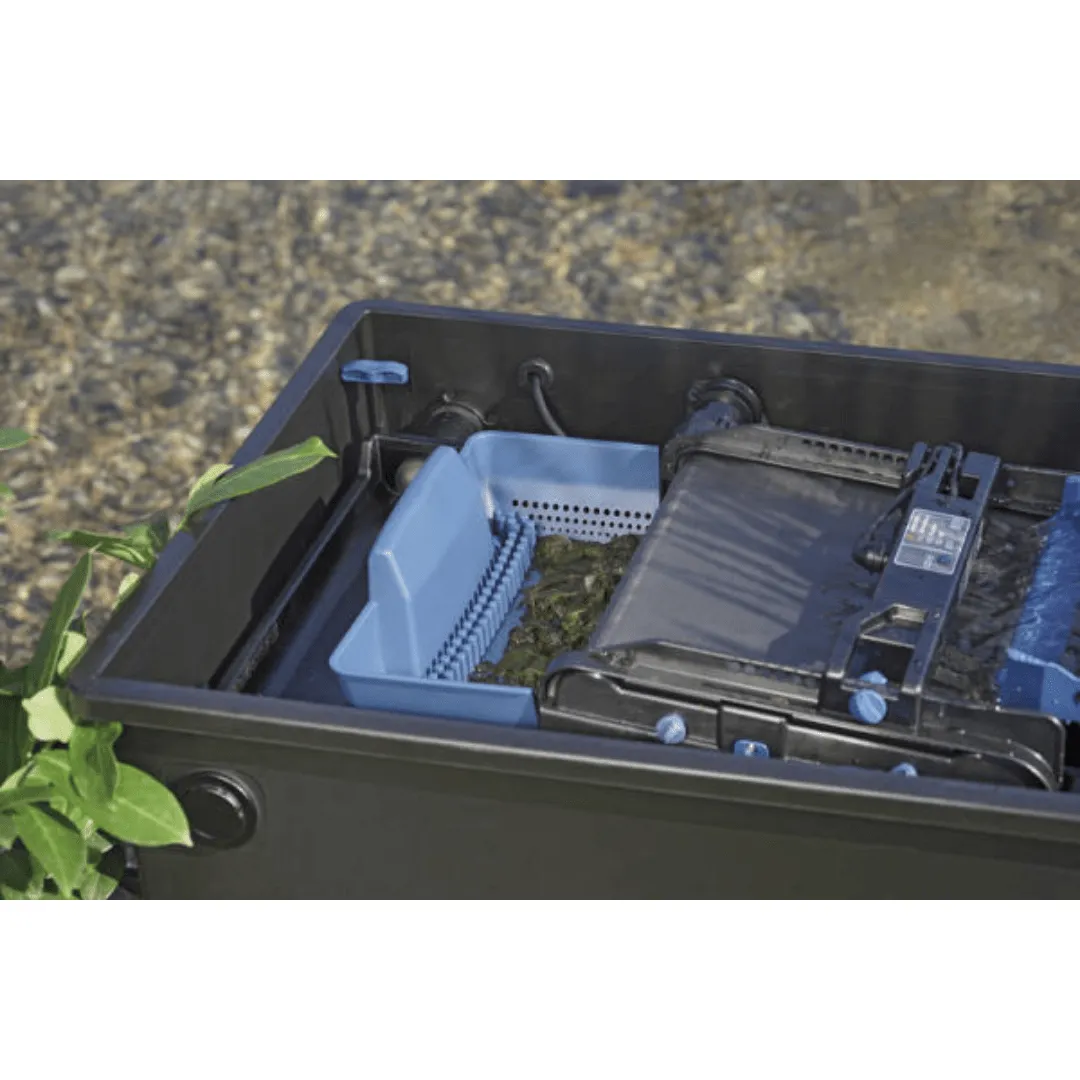

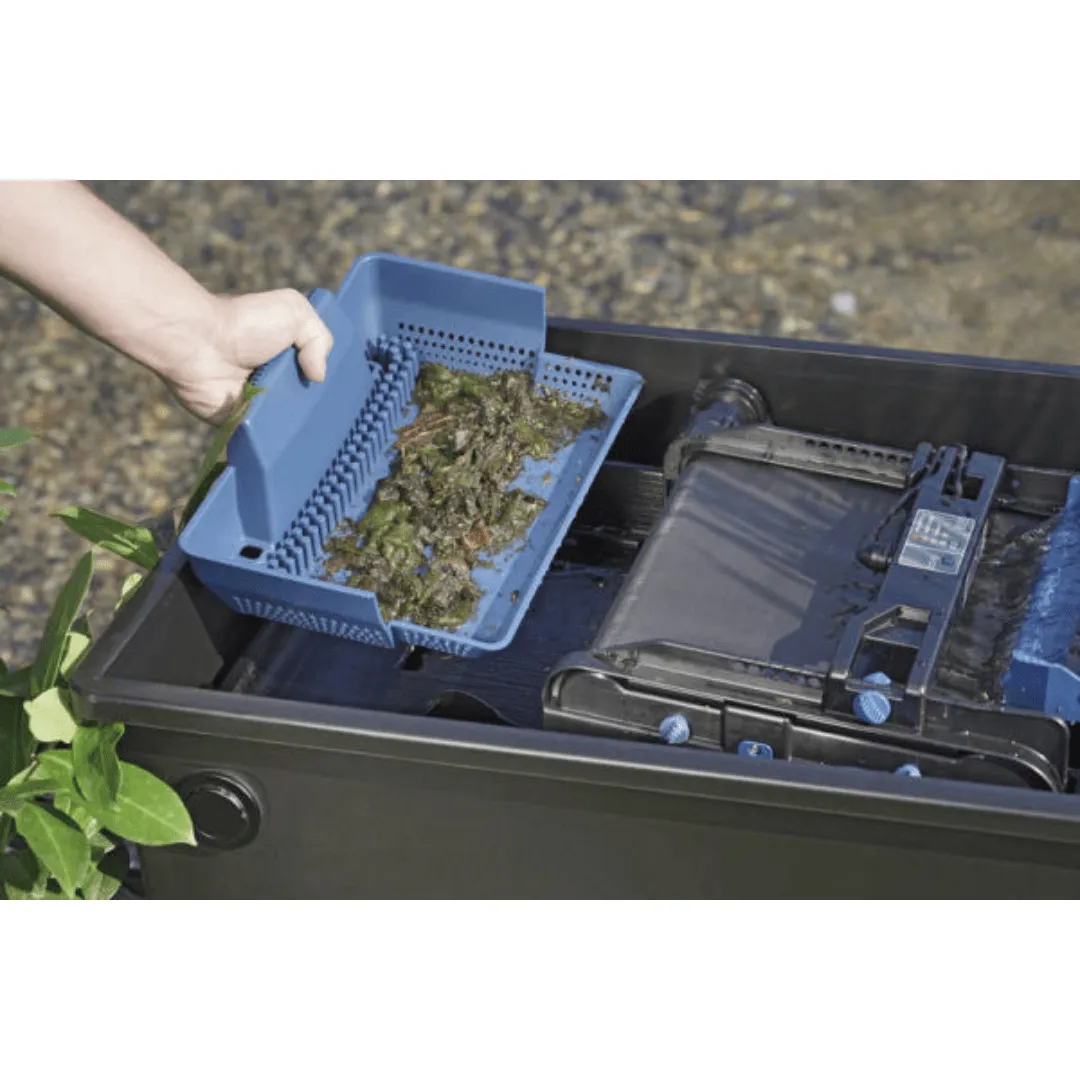

• Coarse debris extractor protects the filter sponges and extends the service life of the filter
• Settlement surface for micro-organisms for decomposition of pollutants and nutrients

Characteristic:

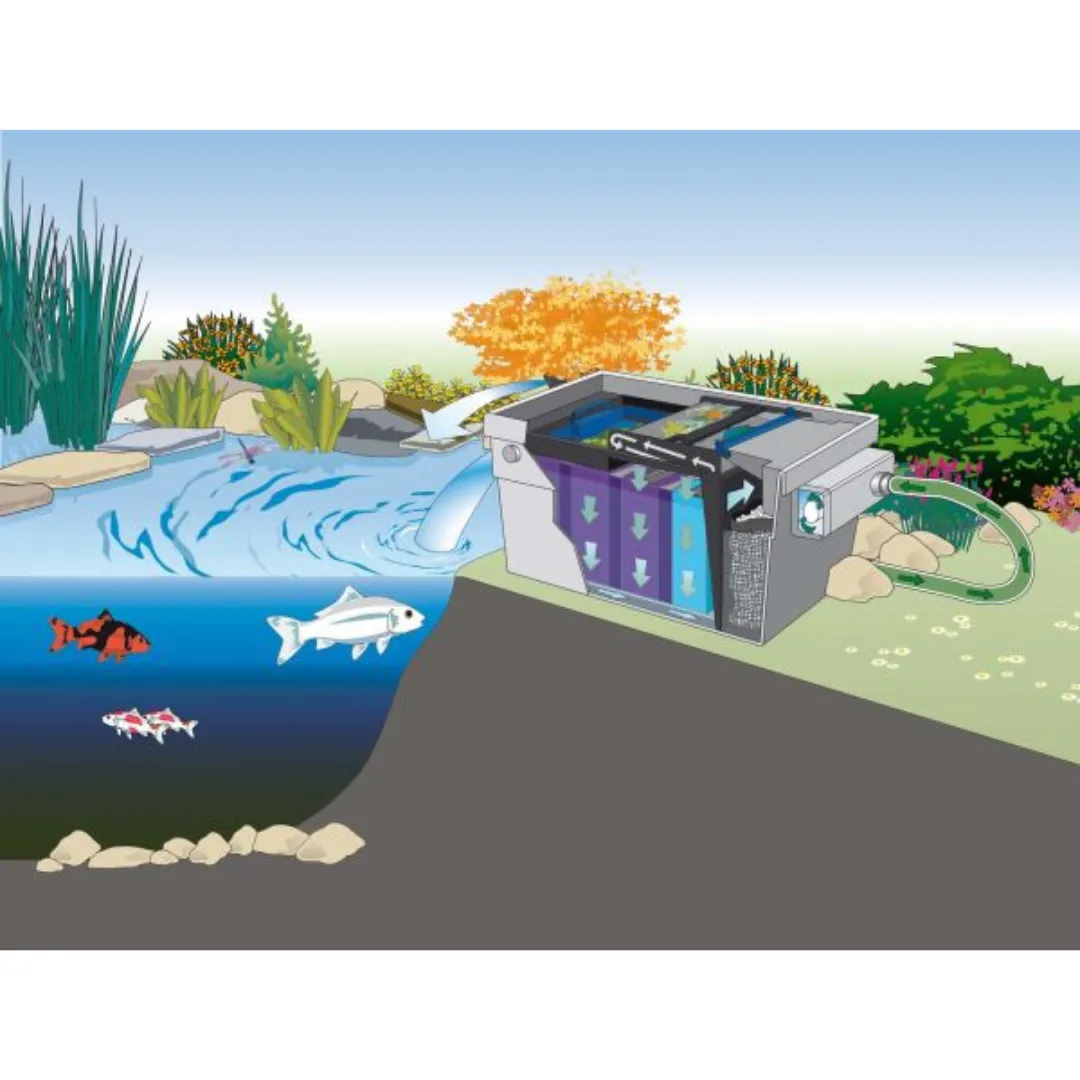

• Combination of mechanical biological cleaning and effective UVC technology
• Incl. OASE Clear Water Guarantee

• Fast and easy set up

• Filter technology simply selected and ready for connection

• Incl. BioKick Filter Starter for initial settlement of microorganisms

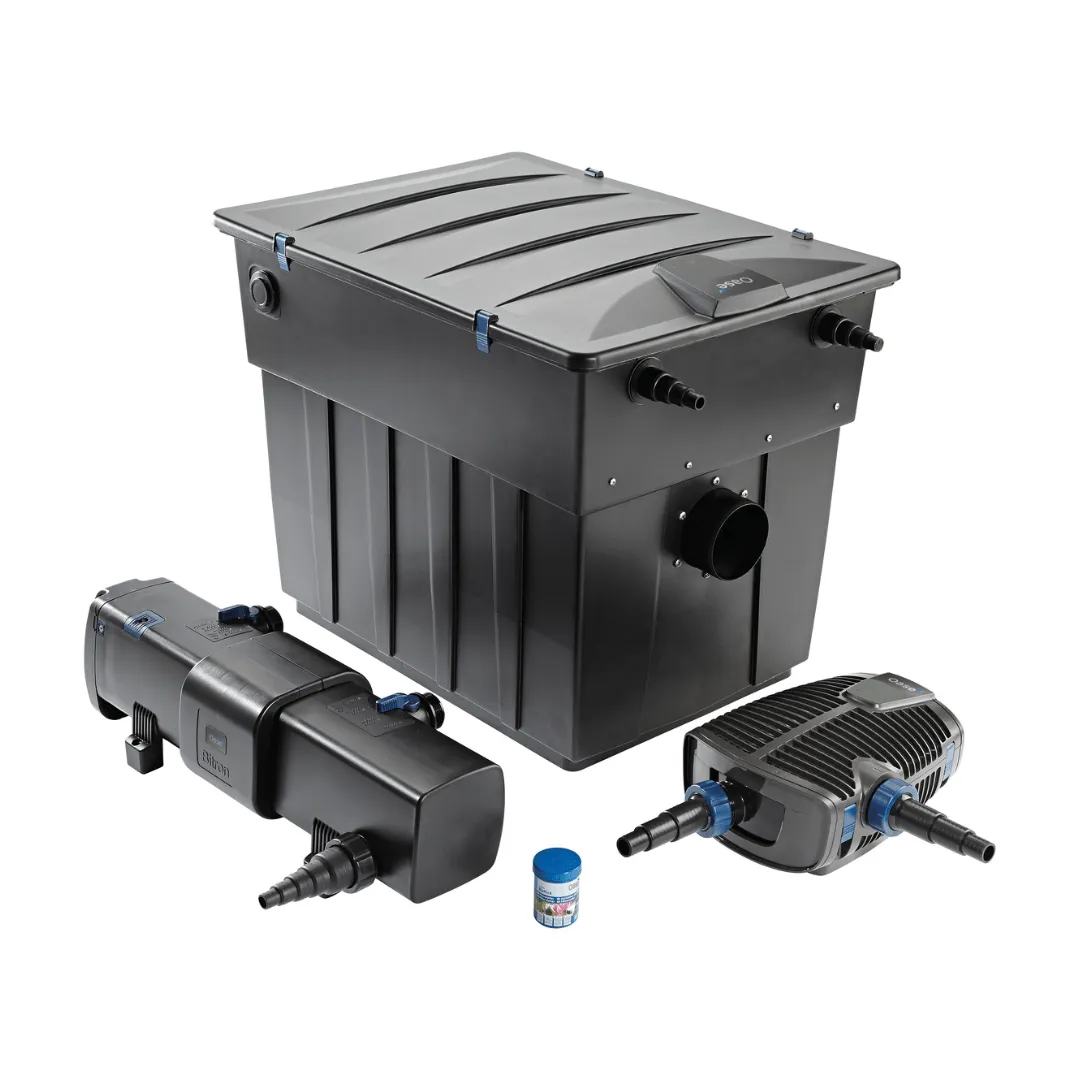

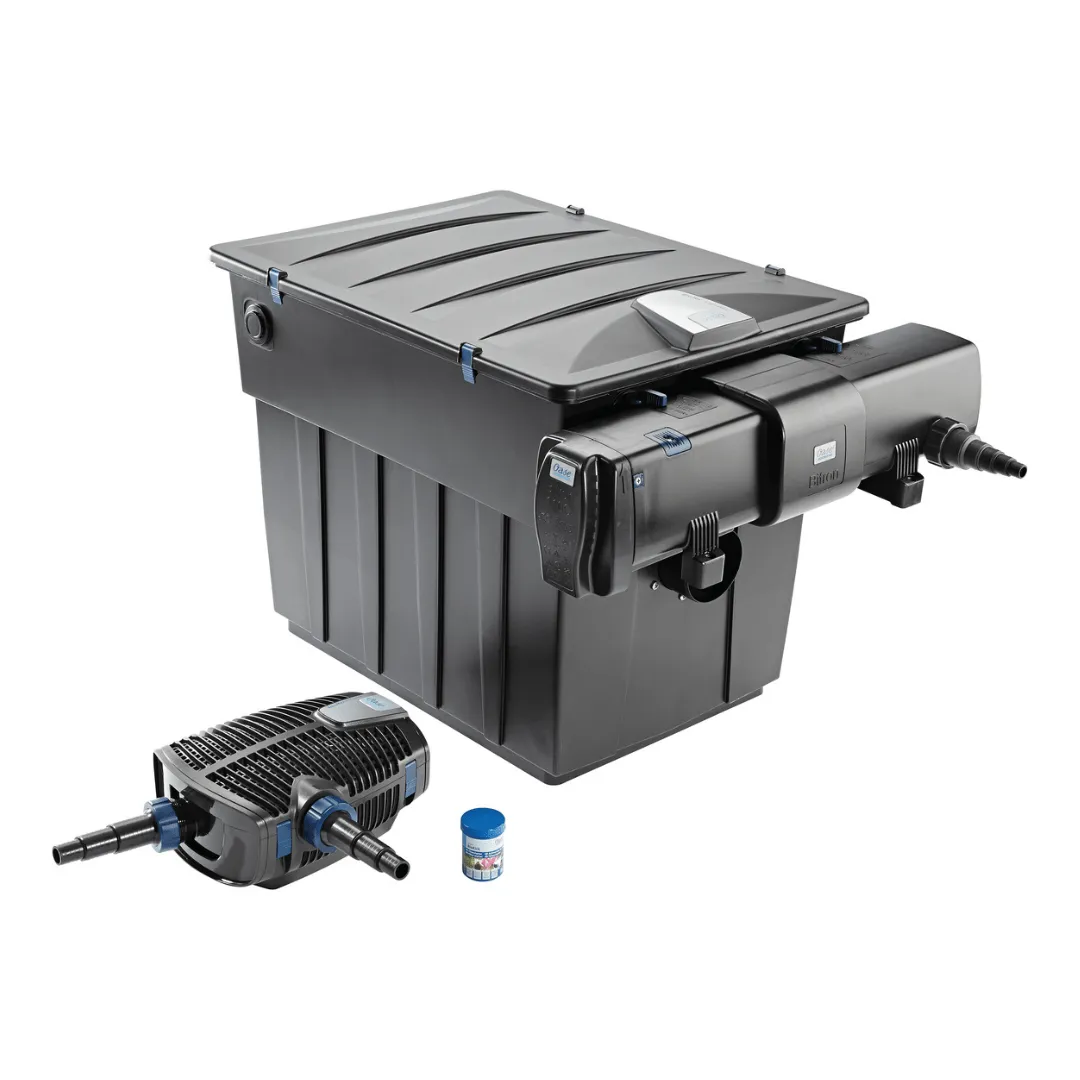

• Complete set includes: Flow through filter BioTec ScreenMatic² with Bitron C self-cleaning UVC clarifier and AquaMax Eco Premium energy efficient filter pump


TECHNICAL DATA:

Dimensions filter (L x W x H) mm 788 x 590 x 645
Net weight kg 42
Rated voltage UVC 220 - 240 V / 50 - 60 Hz
Power consumption W 5
Power consumption UVC W 110 (2x55W UV)
Power cable length UVC m 5.00
Guarantee ( request guarantee) Years 2 1
Guarantee UVC Years 2

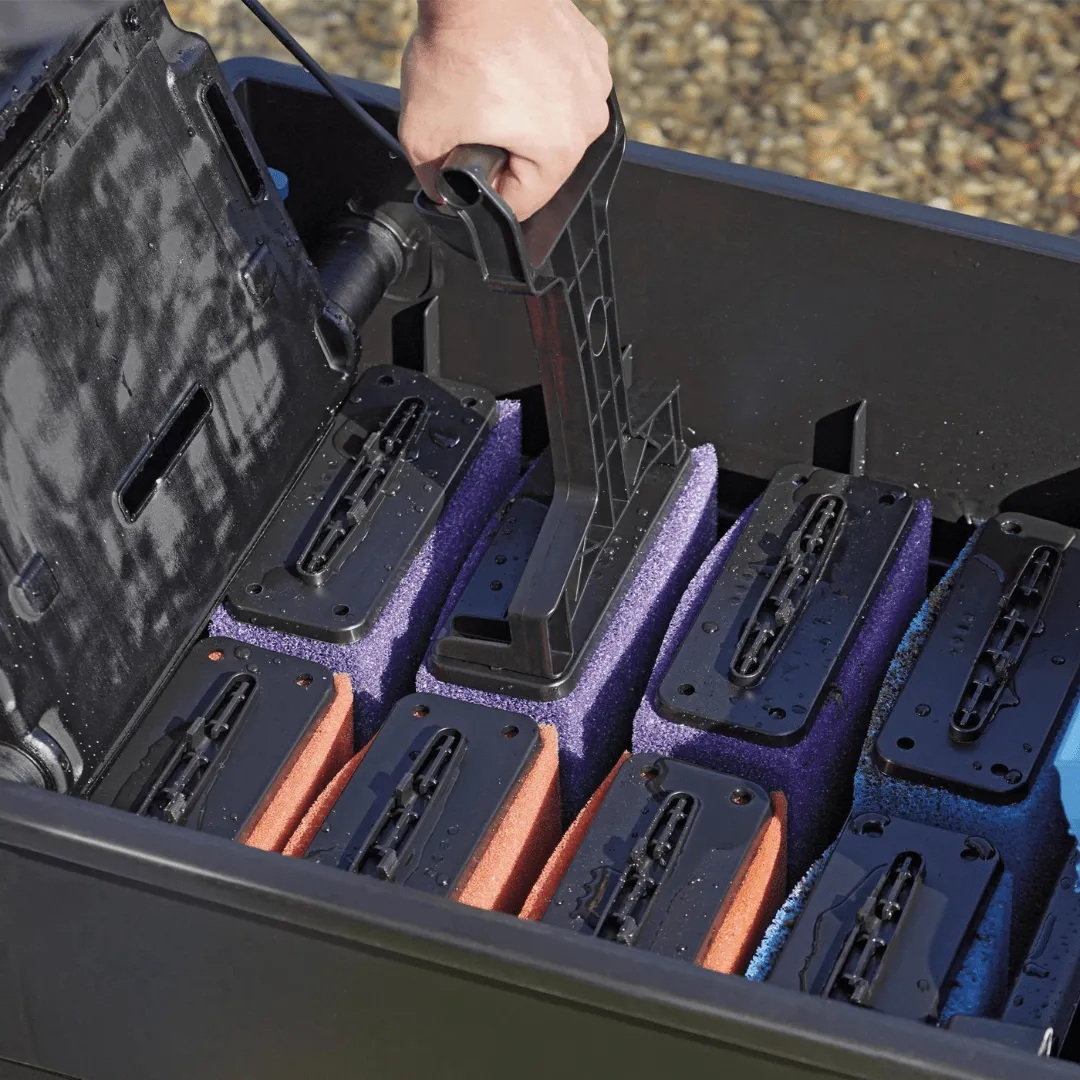

Number of filter foams, total Units 16
Number of blue filter foams Units 4
Number of red filter foams Units 6
Number of purple filter foams Units 6
Special filter granulate kg 5.00
Temperature display No
Coarse debris extraction µm 300
Connection inlet filter mm 25 / 32 / 38
Connection inlet filter 1", 1 ¼", 1 ½"
Connection inlet UVC mm 19 / 25 / 32 / 38 / 50
Connection inlet UVC ¾", 1", 1 ¼", 1 ½", 2"
Connections, outlet filter DN 75

Sludge discharge connections DN 50
Corresponding filter/watercourse pump AquaMax Eco Premium 21000
Dimensions pump (L x W x H) – mm mm 340 x 280 x 160
Rated voltage Pump 220 - 240 V / 50 - 60 Hz
Power consumption pump W 180
Max. flow rate l/h 12500
Guarantee ( request guarantee) pump Years 3 2
Power cable length pump m 10.00
Suitable for ponds up to max. m3 90.0
Suitable for ponds with fish stock m3 45.0
Suitable for ponds with koi m3 22.5
